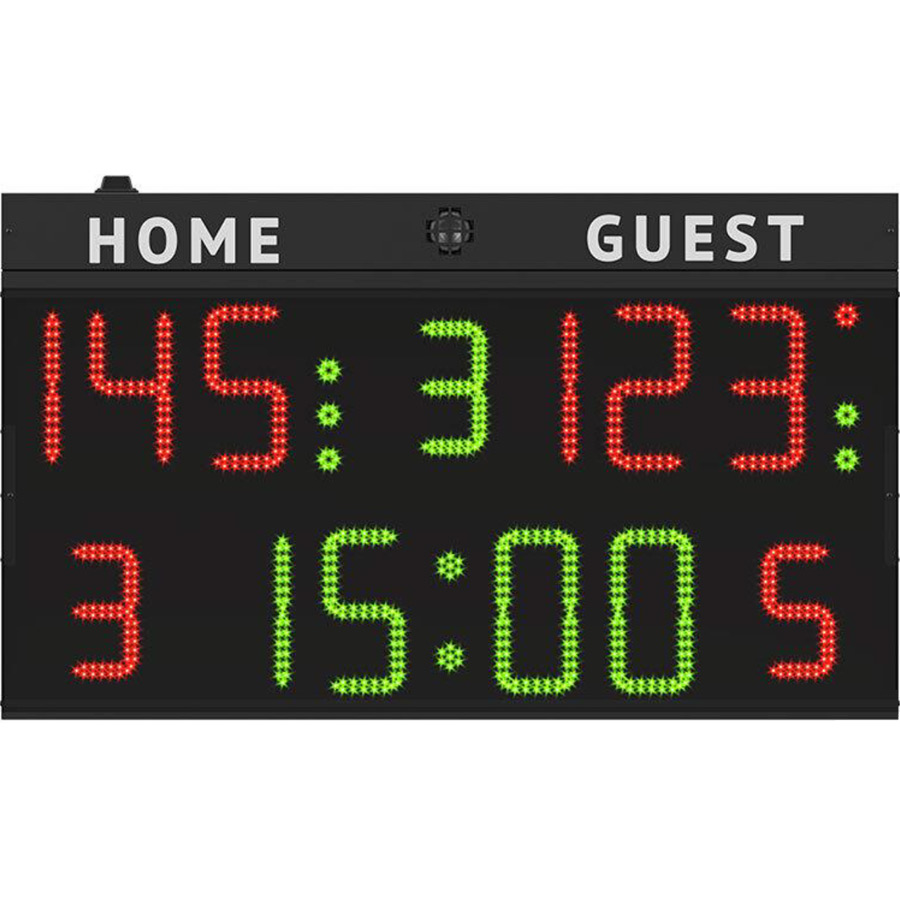

Multisport scoreboard suitable for medium-size gymnasiums and sports halls. FIBA approved, level 3. Suitable for: Basketball, 3×3 basketball, Mini-Basketball, Volleyball, 5-a-Side Football (Futsal), Netball, Tennis, Table Tennis (Ping Pong), Badminton, Boxing, Wrestling, etc.. Height of main display digits: 25cm. Viewing distance: 110m.
Overview
Multisport scoreboard, FIBA approved, level 3.
Viewing distance: 110m for 25cm high digits, 90cm for 20cm high digits.
Viewing angle: 150°.
Display of: team scores, game time, timeouts, team fouls, period, ball possession.
Resistant to damage from balls as per DIN 18032-3 and UNI 9554: 1989 (YouTube video).
Wireless or wired communication.
Display of the time of the day.
Horn.
Suitable for indoor application.
Wall mounting. Supplied with brackets.
Dimensions and weight: 140x83x9cm, 22kg.
To be used together with specific control console.
Specifications
Multisport scoreboard, suitable for medium-size gymnasiums and sports halls.
FIBA approved, level 3 (info, FIBA certificate).
Viewing distance: 110m for 25cm high digits, 90cm for 20cm high digits.
Viewing angle: 150°.
Displayed functions:
Game time [00: 00 – 99: 59]: digits 25cm high.
Team scores [0 – 199]: digits 25cm high.
Period [0 – 9, E]: digit 20cm high.
Team fouls / Sets won [0 – 9]: digits 20cm high.
Timeouts [3 light indicators per team]: diameter 2.5cm.
Ball possession / Service / Turn [1 light indicator per team]: diameter 2.5cm.
Compliant with DIN 18032-3 and UNI 9554: 1989 standard on “Resistance to damage from balls” (YouTube video).
No front protection cover is required. You save on the cost of a protective cover, full visibility is guaranteed, and access to the scoreboard is easy.
To be used together with Console-300 and Console-700, the latter for wireless communication.
Reliable wireless communication: by 2.4GHz FHSS (Frequency Hopping Spread Spectrum) radio transmission to avoid interferences. The use of a wireless system reduces costs by eliminating the need of a cable connection between console and scoreboards.
Suitable for indoor application.
Shipping is cheap and fast. The scoreboard is especially designed to be taken apart into smaller modules that are easy to assemble. This allows it to be shipped via all major couriers at a low cost and with faster delivery times to all countries.
Easy to install. Installation instructions in 5 languages. Supplied with brackets for wall mounting.
Game timer. Using the Control Console (see ACCESSORIES) you can choose different operation modes depending on the sport selected: game and interval time, count back or forward, display last minute tenths of a second, display time of day, etc..
Clock function to display time of the day, also with unplugged console.
The horn can be sounded manually or automatically when the time expires, producing a strong acoustic signal [120dB(A) at 1m] with adjustable duration and intensity.
Robust container made from powder-coated aluminum. Front panel made from anti-glare polycarbonate.
All the internal parts can be accessed from the front for easy maintenance.
Large angle, high quality SMT LED digits, with a typical life of 100, 000 hours.
Power supply: 100-240VAC, 50/60Hz, 160VA. Supplied with power supply cable and plug (plug type can be chosen when ordering).
Guarantee: 2 years (info).
Dimensions and weight: 140x83x9cm, 22kg.
Product options, selectable after adding the article to the basket:
Type of plug.
Adhesive labels: HOME-GUEST, LOCALI-OSPITI, LOCALES-VISITANTES, LOCAUX-VISITEURS, HEIM-G?STE.
Console connection cable, if wireless communication is not used.
Anti-moisture coating of the electronic boards, recommended for swimming-pool and ice-rink installations.
ACCESSORIES
Additional accessories, to be bought separately, necessary for product operation.
Control console: not supplied with the scoreboard.

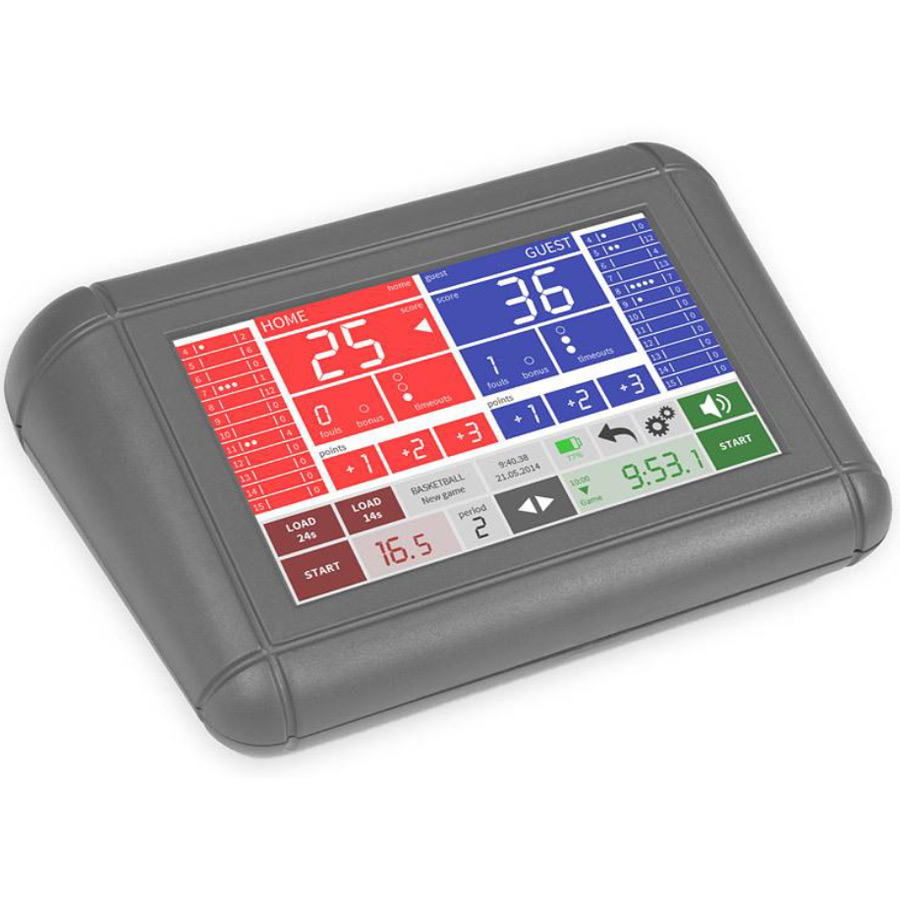

Art.308-01 Console-700
Wireless or wired communication.
Multisport console allows the management of more than 18 sports.
7″ multilingual color touchscreen display.
Intuitive use, with no need of written instructions.
14-hour average life rechargeable lithium battery.
2.4GHz radio transmission, with FHSS (Frequency Hopping Spread Spectrum) technology to avoid interference caused by other devices.
USB port to easily update sports rules.
Impact proof as per EN-60950 for movable equipment.
Modern and ergonomic design, conceived for desktop and hand-held use.
Supplied with power supply unit and battery charger.
Guarantee: 2 years. (info)
Specifications
7″ color touchscreen display.
Ideal for managing many different sports, such as basketball, 3×3 basketball, mini-basket, volleyball, water-polo, handball, netball, rugby, ice hockey, rink hockey, football, futsal FIFA, futsal AMF, tennis, table tennis, badminton, boxing, wrestling and all the sports with the same features of other sports already managed.
Intuitive use, with no need of written instructions.
Multilingual. All the texts are displayed in the selected language: Italian, English, French, Spanish and German.
All game information is displayed at the same time in the main sport screen, included statistics panels with fouls and points of each player.
Up to 75 teams and relevant players can be entered, memorized and retrieved.
A color can be associated to each team; all the buttons assigned to a team are displayed with the associated color. This facilitates the operator and avoids mistakes.
Wired and wireless communication with the scoreboards.
Reliable wireless communication: by 2.4GHz FHSS (Frequency Hopping Spread Spectrum) radio transmission to avoid interferences. The use of a wireless system reduces costs by eliminating the need of a cable connection between console and scoreboards.
Including a rechargeable lithium battery with 14-hour average life and battery charge level indicator. The console can be directly connected to the mains using the 100-240V universal power supply unit supplied with the console. The unit also serves as battery charger.
Thanks to the battery power supply and the wireless communication requiring no cable connection, free positioning and movement is possible while using the console.
USB port for easy software update in case of changes to sports rules. The update is automatically carried out by simply inserting the USB key containing the new software.
Impact proof as per EN-60950 for movable equipment. Sturdy ABS case.
Modern and ergonomic design, conceived for desktop and hand-held use.
The shot clock and the chronometer can be managed either directly from the console or through the additional “Time-Console-03” consoles, art.232-03.
Dimensions and weight. 24.5x17x8.5cm, 1.35 kg.
